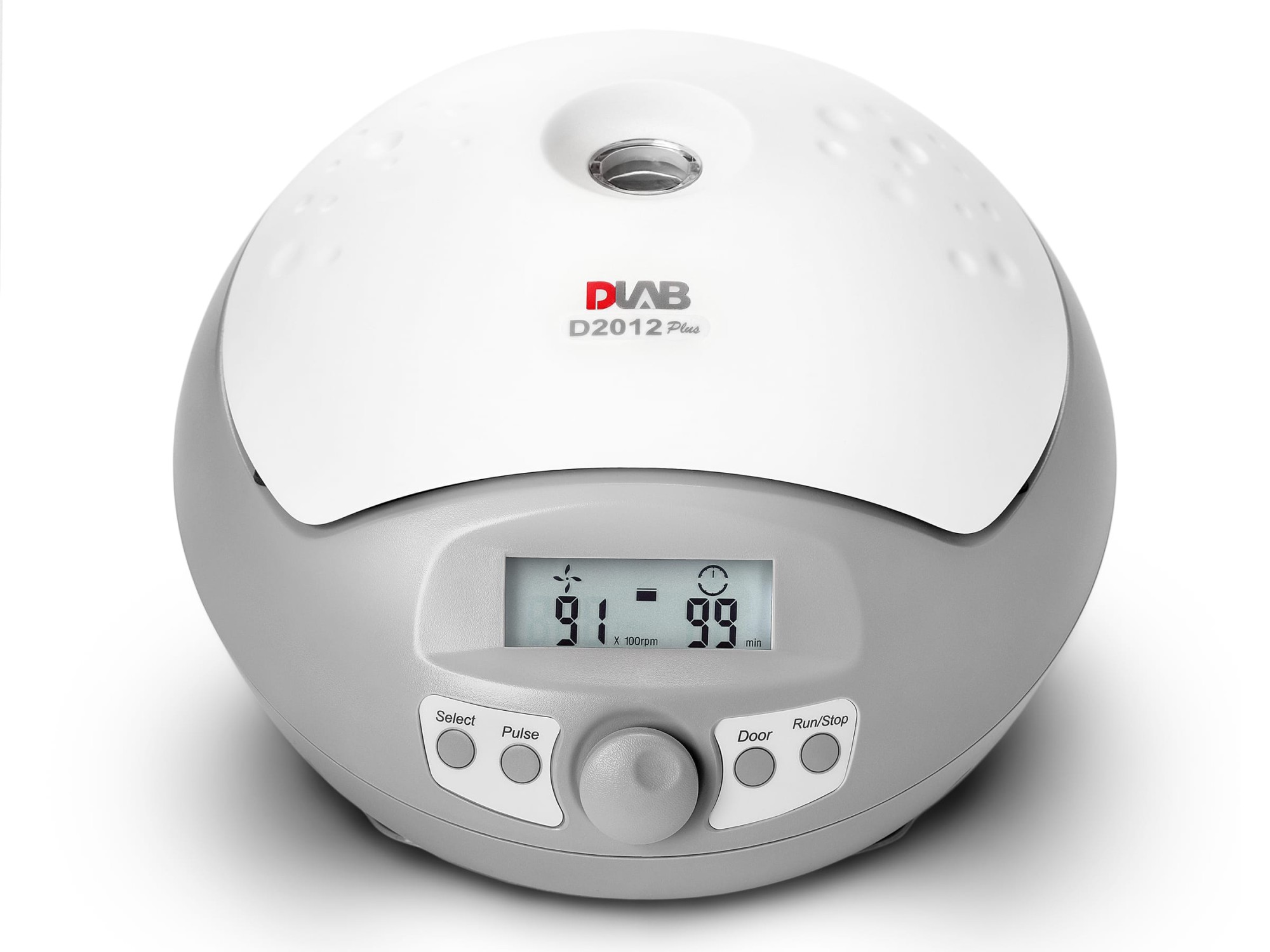

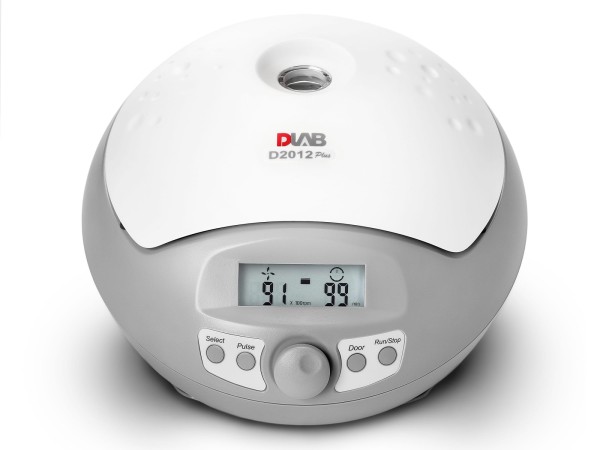

D2012 plus - Centrifuge
Key Features
• Powerful centrifugal force of 15100xg and max. speed of 15000rpm ideal for various applications
• Brushless DC motor drive quickly accelerates the rotor to set speed
• Quiet working, Low noise ≤56dB
• D2012 is proven by IEC/EN 61010-1
• D2012 Plus passed the rigorous explosion-proof test and accredited with CE, cTUVus, FCC certificates, and MCA test. MCA test according to IEC/EN61010-2-20
| Cat. No. | P/N | Descriptions | Power supply |
| 9032002121 | D2012 plus | High Speed Mini Centrifuge (CE marked), with A12-2P plastic rotor kit（select 19400010）(package contain in the box) | Euro plug, 220-240V/50Hz/60Hz |

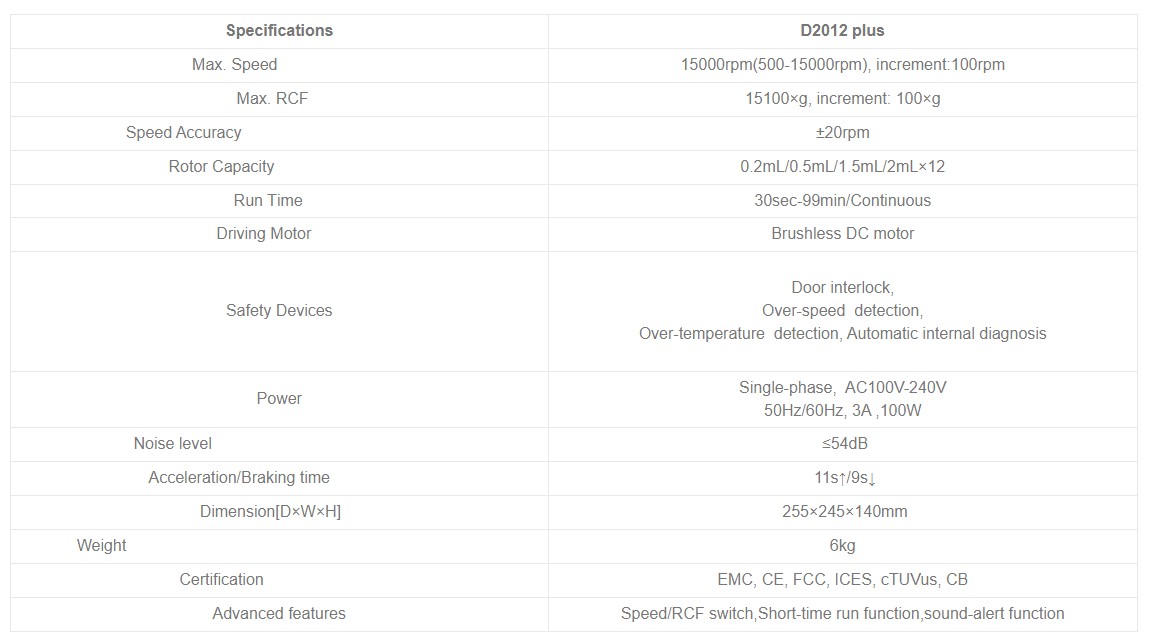

| Specifications | D2012 plus | |
| Max. Speed | 15000rpm(500-15000rpm), increment:100rpm | |
| Max. RCF | 15100×g, increment: 100×g | |
| Speed Accuracy | ±20rpm | |
| Rotor Capacity | 0.2mL/0.5mL/1.5mL/2mL×12 | |
| Run Time | 30sec-99min/Continuous | |
| Driving Motor | Brushless DC motor | |
| Safety Devices | Door interlock, Over-speed detection, Over-temperature detection, Automatic internal diagnosis | |
| Power | Single-phase, AC100V-240V 50Hz/60Hz, 3A ,100W | |
| Noise level | ≤54dB | |
| Acceleration/Braking time | 11s↑/9s↓ | |
| Dimension[D×W×H] | 255×245×140mm | |
| Weight | 6kg | |
| Certification | EMC, CE, FCC, ICES, cTUVus, CB | |
| Advanced features | Speed/RCF switch,Short-time run function,sound-alert function |
