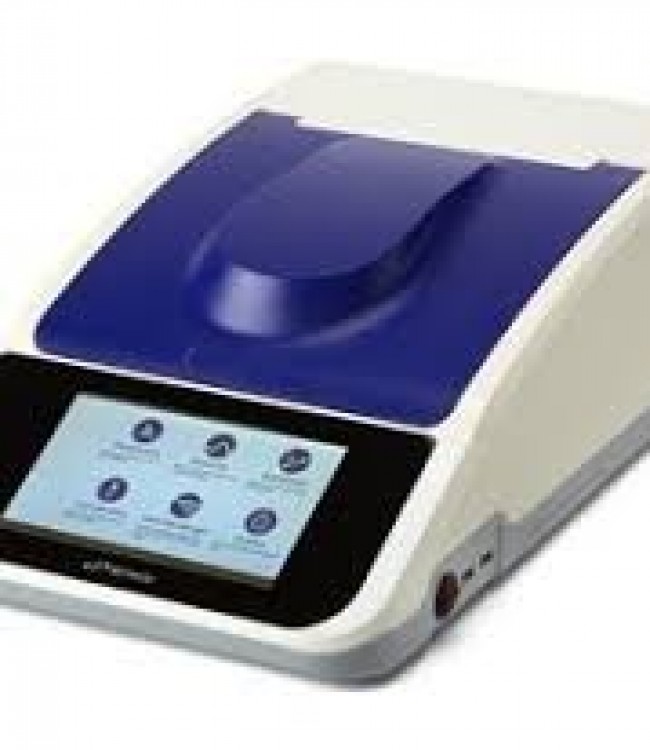

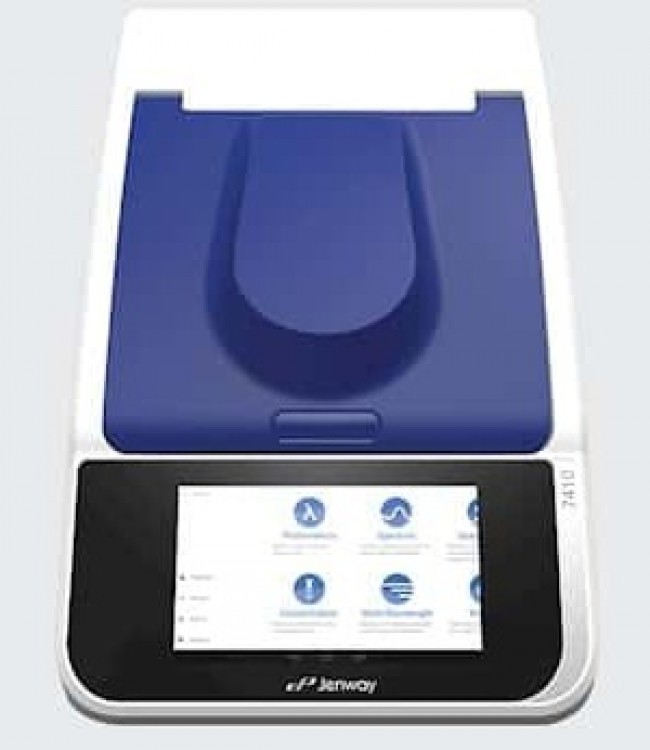

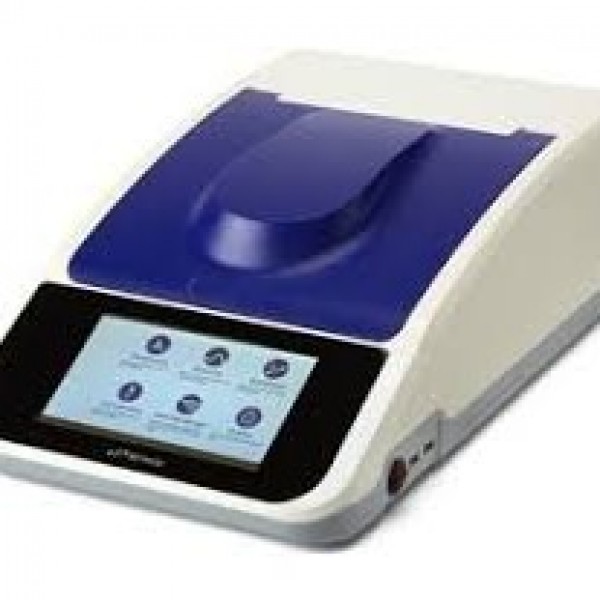

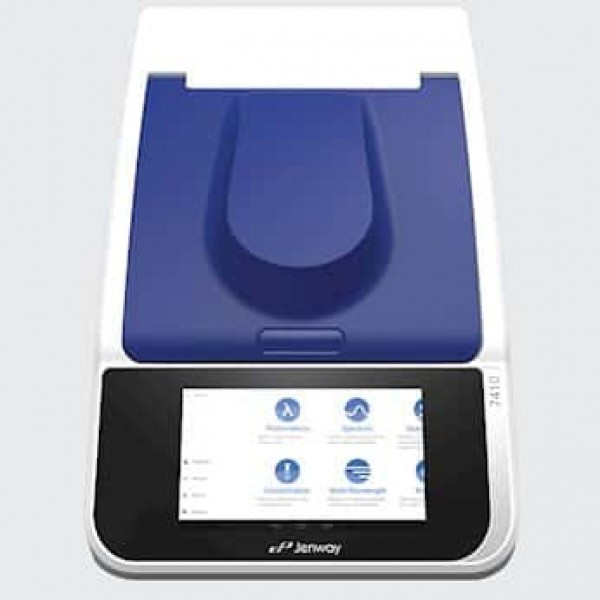

Jenway 7415 Spectrophotometers
• 7" High Definition colour touchscreen display
• Android operating system
• Internal memory for methods and results (3.6GB onboard storage)
• Multiple USB ports for data storage and printer connectivity
• Multi-language options including English, French, German, Spanish and Italian
• Extensive range of accessories available
• 3-year warranty (excluding Tungsten lamp used on 7410)
Technical Specification
| Parameter | 7410 | 7415 |
|---|---|---|
| Wavelength Range | 320 to 1000nm | 198 to 1000nm |
| Light source | Tungsten halogen lamp | Xenon lamp |
| Accuracy | ± 2nm | ± 2nm |
| Repeatibility | ± 0.5nm | ± 0.5nm |
| Spectral bandwidth | 5nm | 5nm |
| Photometric Transmittance | 0 to 199.9 | 0 to 199.9 |
| Photometric Absorbance | - 0.300 to 2.500 | - 0.300 to 2.500 |
| Photometric Accuracy | ± 1T, ± 0.01Abs at 1.000 Absorbance | ± 1T, ± 0.01Abs at 1.000 Absorbance |
| Photometric Resolution | 0.1T, 0.001A | 0.1T, 0.001A |
| Concentation Calibration | Blank with a single standard or factor | Blank with a single standard or factor |
| Quantitation Calibration | Blank with up to 20 standards | Blank with up to 20 standards |
| Quantitation Curve fit algorithms | Quadratic, quadratic through zero, linear, linear through zero, interpolate | Quadratic, quadratic through zero, linear, linear through zero, interpolate |
| Kinetics Analysis | Concentration, rate of change, initial and final absorbance T | Concentration, rate of change, initial and final absorbance T |
| Spectrum Range | 320 to 1000nm | 198 to 1000nm |
| Spectrum Scan interval | 1, 2, 5 or 10nm | 1, 2, 5 or 10nm |
| Spectrum Analysis | Absorbance or transmittance, peak and valleys and area under the curve | Absorbance or transmittance, peak and valleys and area under the curve |
| Internal memory | 3.6GB | 3.6GB |
| External memory | Limited by attached mass storage device | Limited by attached mass storage device |
| Outputs | USB Type A x 2, USB Type B x 1, Ethernet connection (RJ45) | USB Type A x 2, USB Type B x 1, Ethernet connection (RJ45) |
| Size (w x d x h) | 280 x 500 x 156mm | 280 x 500 x 156mm |
| Weight | 9kg | 9kg |
