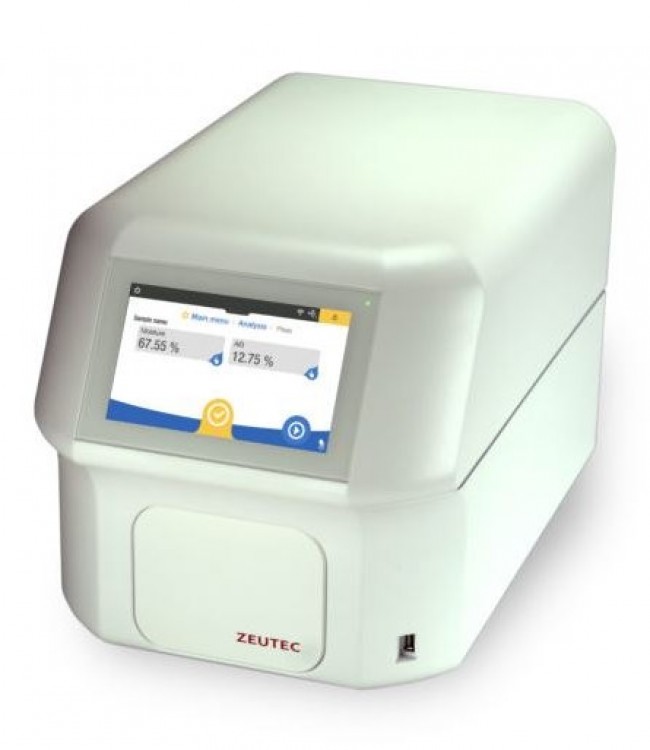

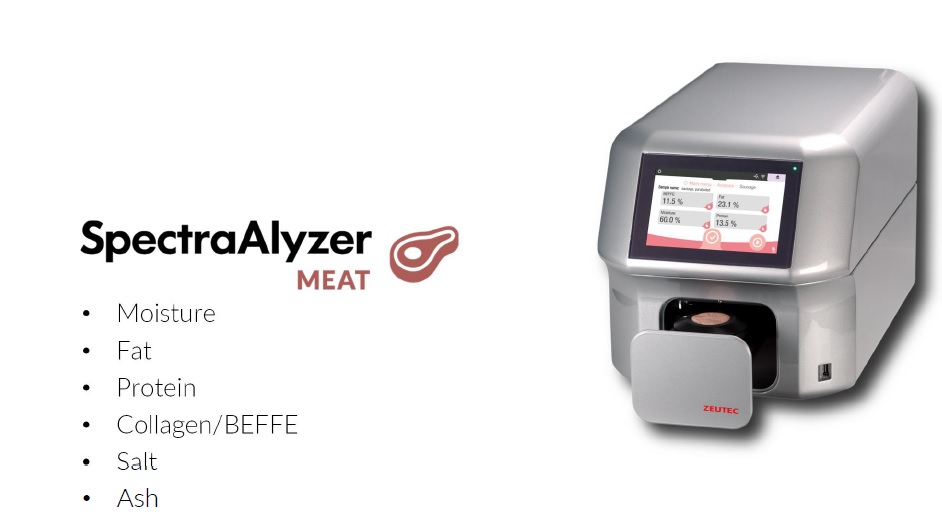

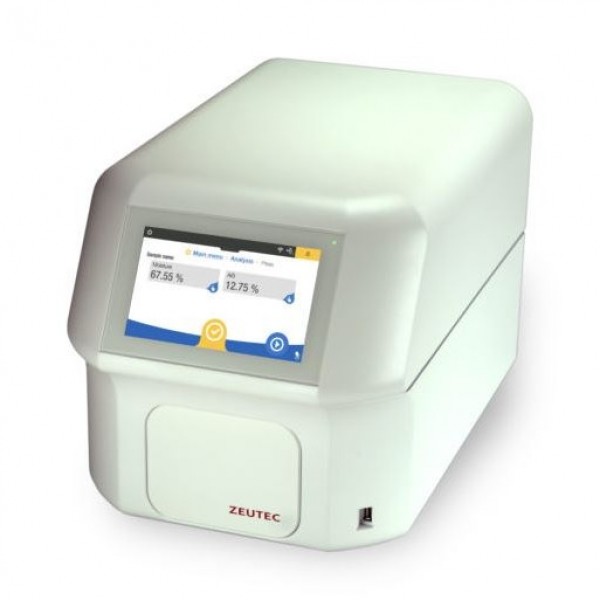

SpectraAlyzer FOOD / for food analysis

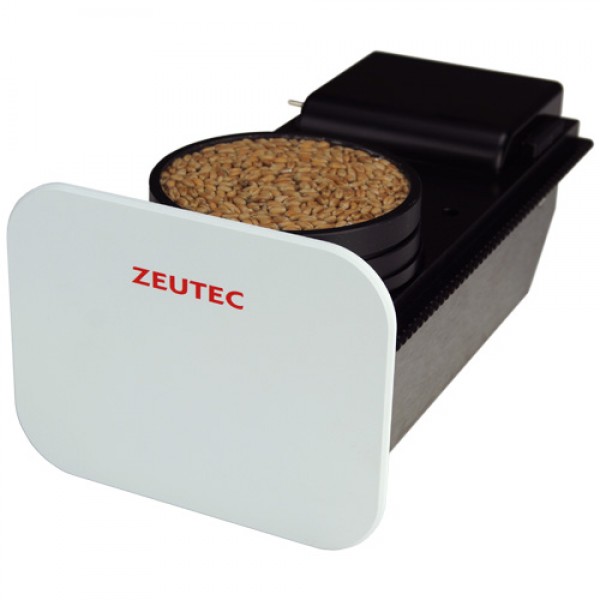

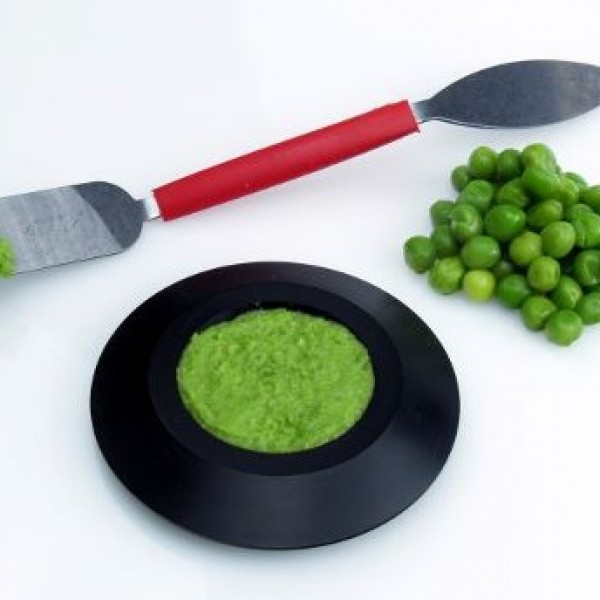

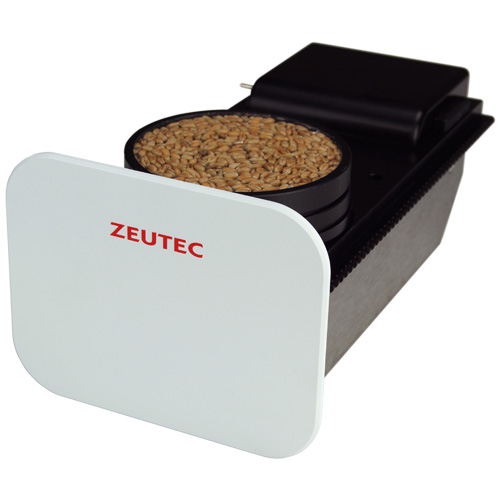

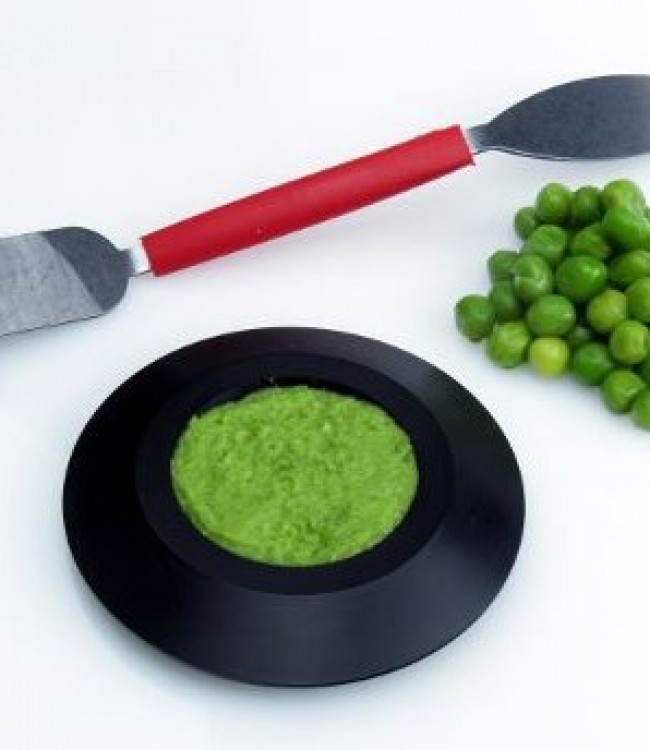

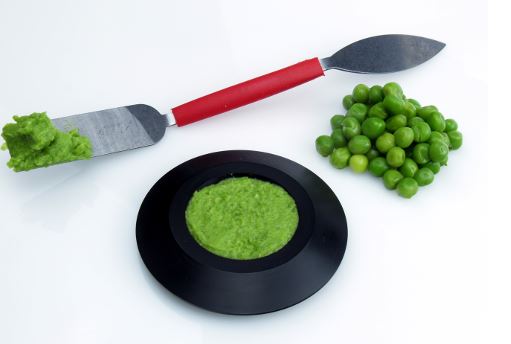

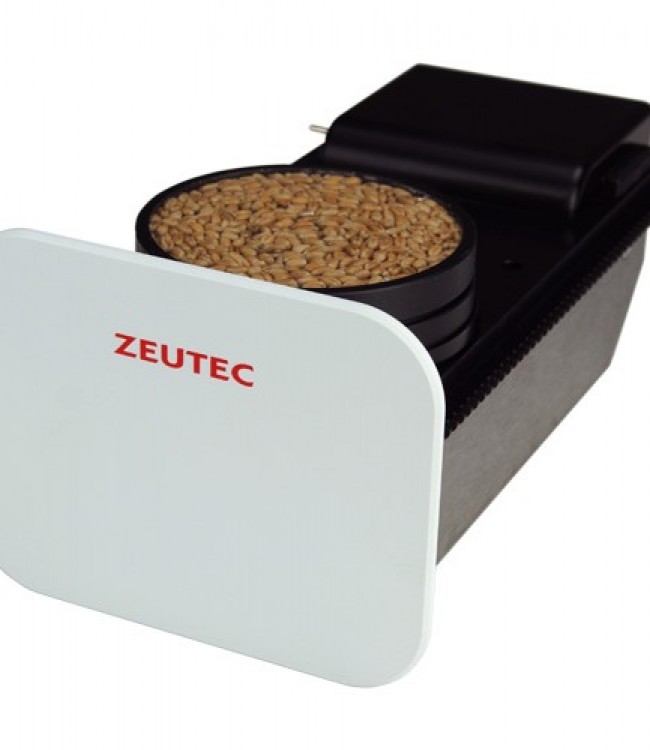

• Versatile sample presentation

with closed, open, viscous and slide cups for powders, pastes, slurries and liquids.

• Many mathematical models

for all kind of products included for quick calibration models installation and start

• NIR sample / reference technology

like all SpectraAlyzer instruments for high sensitive and long term stable measurements.

• Touch user interface

and intrinsically mounted glass touch for straight forward hygienic instrument operation.

• Compact design

optimised for bench top or at-line application.

• Web server connectivity

for direct instrument access via LAN and internet from anywhere, any time.

• User friendly

           sample presentation and easy to operate.

Design



For food products
Spectral range	800-2500 nm (optional 400 to 800nm with colour module)
Optical bandwidth	< 6 nm
Dual beam system, Sample / Reference measurement
High signal to noise ratio	> 150.000:1
Large expandable internal memory for calibrations, methods and history results
Auto-diagnostics
Graphical user interface, projected capacitive glass touch panel

Accessories

Standard calibrations	Included
Keyboard	As optional accessory
Barcode reader	As optional accessory
Printer	Thermal ticket or office type printer as optional accessory
WiFi	Wireless LAN as optional accessory
AWX	Application worx, chemometric software package

Specifications

Screen	TFT 800 x 480 pixel
Power requirements	min. 90 V AC (50 – 60 Hz), max. 260 V AC (50 – 60 Hz), 220VA
Operating temperature	5 °C – 40 °C non-condensing
Interfaces	1 x front USB 2.0, 3 x USB 2.0, 2 x RS232, Ethernet, Audio out
Dimensions	Height: 310 mm / Width: 300 mm / Depth: 480 mm
Weight	17 kg
